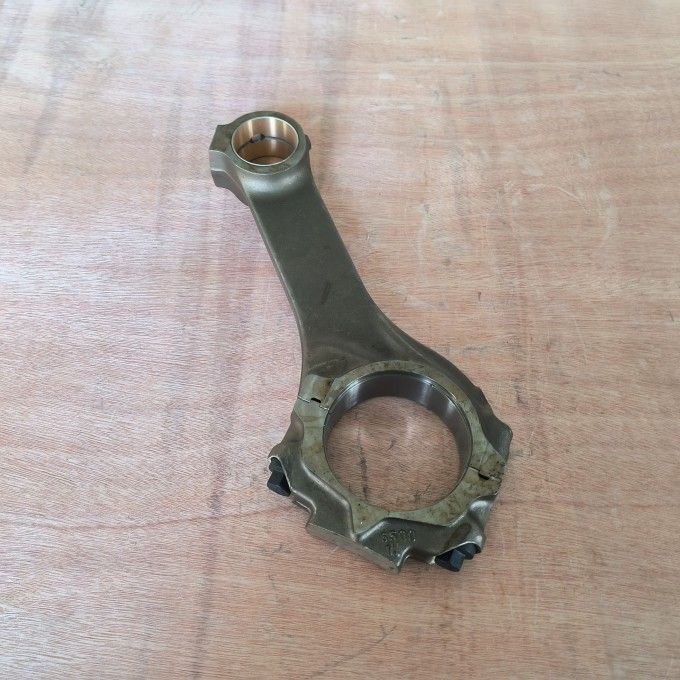

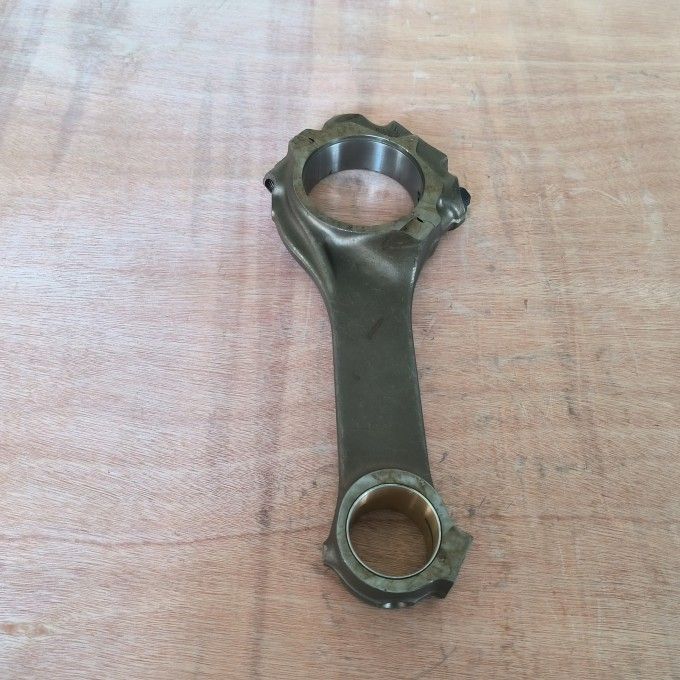

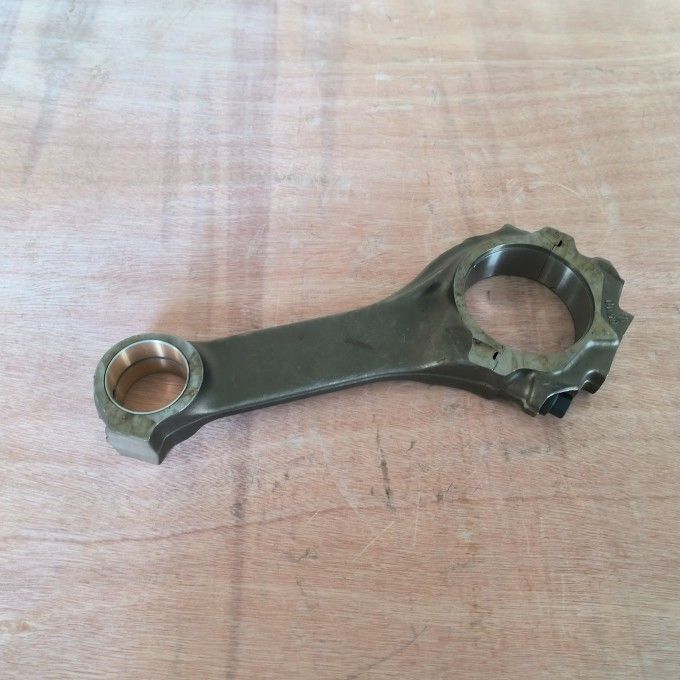

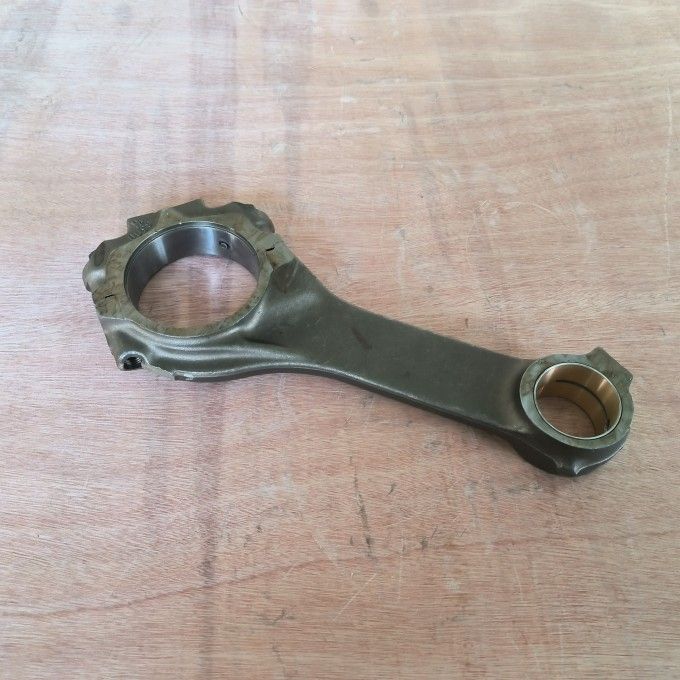

This connecting rod is a precision-engineered direct replacement for the DEUTZ B/FL413 series air-cooled V-type diesel engines, including F6L413, F8L413, F10L413, and F12L413 configurations widely used in heavy-duty industrial, marine, and mining equipment. Manufactured from high-strength forged 42CrMo4 alloy steel, each rod undergoes multi-stage heat treatment (quenching and tempering) to achieve superior tensile strength and fatigue resistance under sustained high cylinder pressure. The big end bore is CNC machined to OEM specifications, accepting standard bearing shells with locating tabs, and is available in STD, 0.25mm, and 0.50mm undersize options. The small end is fitted with a case-hardened phosphor bronze bushing, precision honed to exact wrist pin clearance for extended service life under demanding conditions. Every unit is 100% magnetic particle inspected (MPI) for surface and subsurface cracks, and key dimensions — center distance, bore roundness, bolt hole alignment — are verified with CMM equipment. Rod bolts (grade 12.9) are included and pre-torque validated. Weight matching across a set is controlled within ±2 grams to minimize vibration in V-configured engines. Compatible with genuine DEUTZ or premium aftermarket bearing shells, this connecting rod supports full overhaul, damaged rod replacement, or rebuilding of core engines for resale into Africa, Southeast Asia, Middle East, and South American markets.
