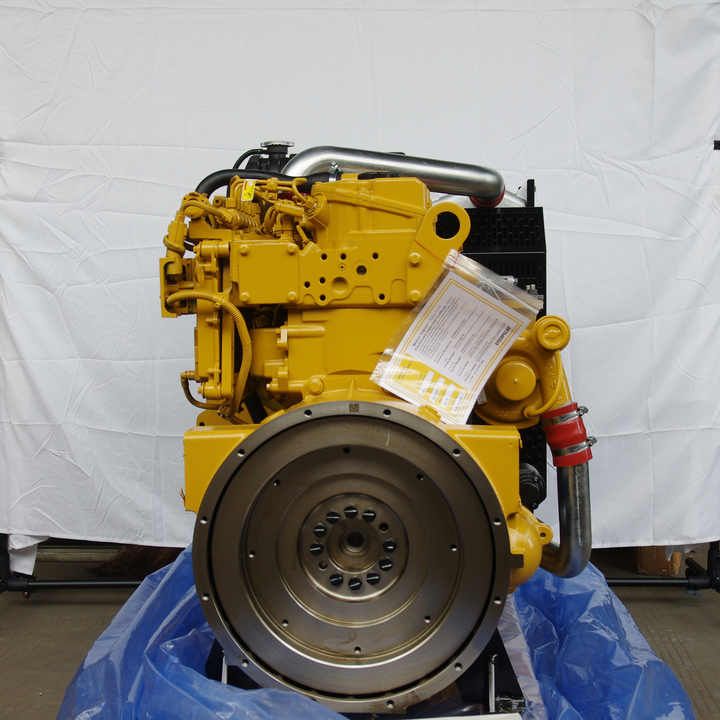

We supply the Cat C4.4 diesel engine as a factory-direct export package built around one specific pain point: fitting a 4.4L block into machine bays originally designed around larger displacements. The C4.4’s modular core cuts length by roughly 20% and weight by about 40% versus the 5-liter platform it replaces, which matters for OEMs building mobile crushers, asphalt pavers, and drill rigs where every millimeter of clearance counts . From our China facility, we pair that installation advantage with export-ready emissions documentation—whether the destination requires EPA Tier 4 Final or EU Stage V—so the engine clears port inspection without a paperwork scramble.
Production specification
C4.4 | |
Cyl No. and Arrangement | 4-Cyl in-line |
Bore/Stroke(mm) | 105/127 |
Air-intake way | Turbo charged cooling |
Combustion system | Direct injection |
Cooling way | Water-cooled |
Displacement(L) | 4.4 |
Max.Torque(N.m) | 500 |
Power(kw) | 100 |
Power(hp) | 134 |
Speed(rpm) | 1800 |
Net Weight(kg) | 400 |
Weight(kg) | 500 |
Dimension(L*W*H/cm) | 110*80*90 |
Application: | construction machinery / generator set / mining equiment / water pump / truck |
Certification | ISO9001:2000 |
Warranty | 12 Months / 1000 Hours |
Quality Control | The engines have been rigorously tested |
Payment | T/T, Western Union. |
Service | Guidance on product issues through online and video support |
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |
