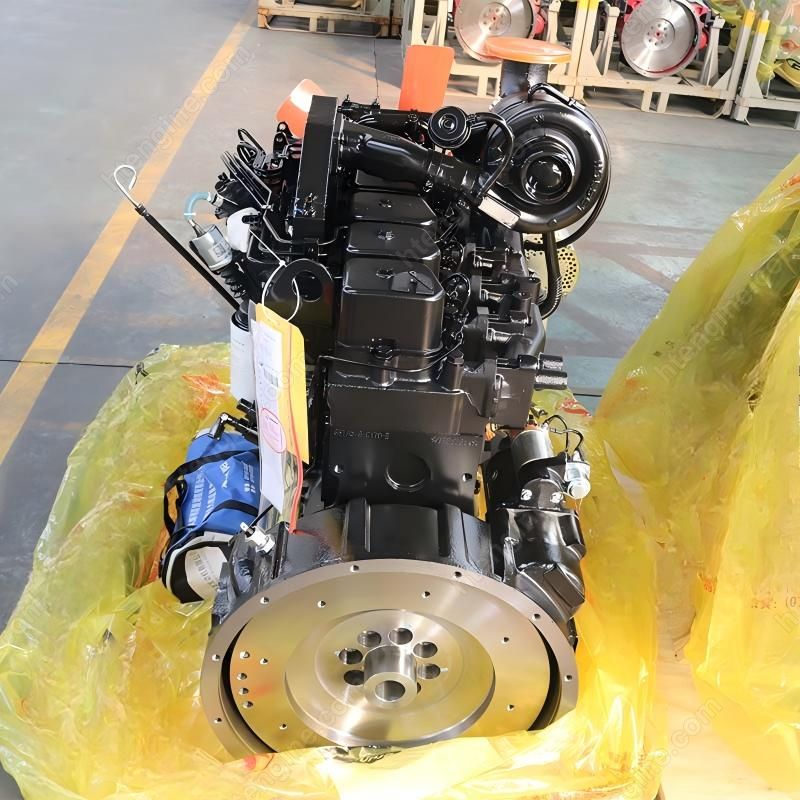

We are a specialized Chinese exporter and factory-direct supplier of the Cummins 6BTA5.9 diesel engine, offering versatile power solutions for standby and prime generator sets (6BTA5.9-G2 delivering 116–132kW standby power; 6BTA5.9-G5 rated at 110kVA), marine main propulsion and auxiliary applications (6BTA5.9-M150 with 150HP and GM100 auxiliary variant), and heavy-duty construction equipment such as excavators, wheel loaders, and road graders. The 6BTA5.9 platform features a 6-cylinder 5.9L turbocharged and air-to-water aftercooled configuration that significantly enhances power density and thermal efficiency compared to naturally aspirated models, with rated outputs spanning 100–177HP and peak torque reaching 630N.m for demanding continuous-duty operations. Our engines are manufactured under strict Dongfeng Cummins quality protocols, backed by comprehensive after-sales support including technical documentation, spare parts availability, and OEM-compatible warranty terms.
Production specification
6BTA5.9-C160 | 6BTA5.9-C180 | 6BTA5.9-C200 | |
Cyl No. and Arrangement | 6-Cyl in-line | ||
Bore/Stroke(mm) | 102/120 | ||
Air-intake way | Turbo charged cooling | ||
Combustion system | Direct injection | ||
Cooling way | Water-cooled | ||
Displacement(L) | 5.9 | ||
Max.Torque(N.m) | 580 | 650 | 720 |
Power(kw) | 119 | 134 | 149 |
Power(hp) | 160 | 180 | 200 |
Speed(rpm) | 2000 | ||
Net Weight(kg) | 520 | ||
Weight(kg) | 580 | ||
Dimension(L*W*H/cm) | 110*75*90 | ||
Application: | construction machinery / generator set / mining equiment / water pump / truck | ||
Certification | ISO9001:2000 | ||
Warranty | 12 Months / 1000 Hours | ||
Quality Control | The engines have been rigorously tested | ||
Payment | T/T, Western Union. | ||
Service | Guidance on product issues through online and video support | ||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |||
