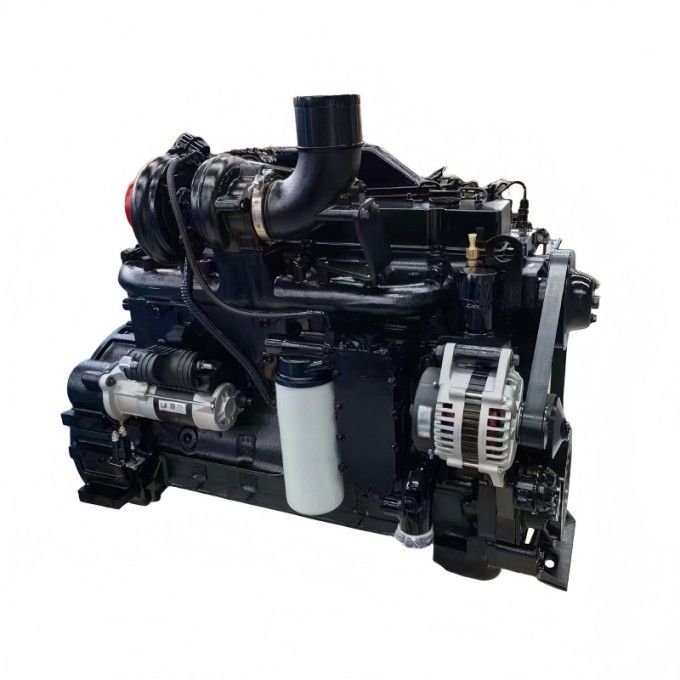

cummins 6cta8.3 diesel engine water cooled 6 cylinder 4 stroke assembly

We offer the Cummins 6CTA8.3 – an 8.3L inline 6 heavy-duty diesel engine delivering 150-250kW and 1200N·m torque. Built with a deep-skirt block and wet liners, this C-series engine powers 25-40 ton excavators, workboats, concrete pumps, and 300kVA gensets worldwide – with either mechanical P7100 pump or CAPS injection. As a China exporter, we supply complete engines, pumps, injectors, and full gasket kits, all hot-tested prior to shipment. We also help verify compatibility with your existing flywheel housing and mounts for a true bolt-on replacement. Send your equipment brand, model, and current engine serial number for a matched quote.

Production specification


6CTA8.3-c200

6CTA8.3-c240

6CTA8.3-c300

Cyl No. and Arrangement

6-Cyl in-line

Bore/Stroke(mm)

114/135

Air-intake way

Turbo charged cooling

Combustion system

Direct injection

Cooling way

Water-cooled

Displacement(L)

8.3

Max.Torque(N.m)

650

780

950

Power(kw)

149

179

224

Power(hp)

200

240

300

Speed(rpm)

2000

Net Weight(kg)

650

Weight(kg)

750

Dimension(L*W*H/cm)

120*75*95

Application:

construction machinery / generator set / mining equiment / water pump / truck

Certification

ISO9001:2000

Warranty

12 Months / 1000 Hours

Quality Control

The engines have been rigorously tested

Payment

T/T, Western Union, Alibaba online payment.

Service

Guidance on product issues through online and video support

The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
