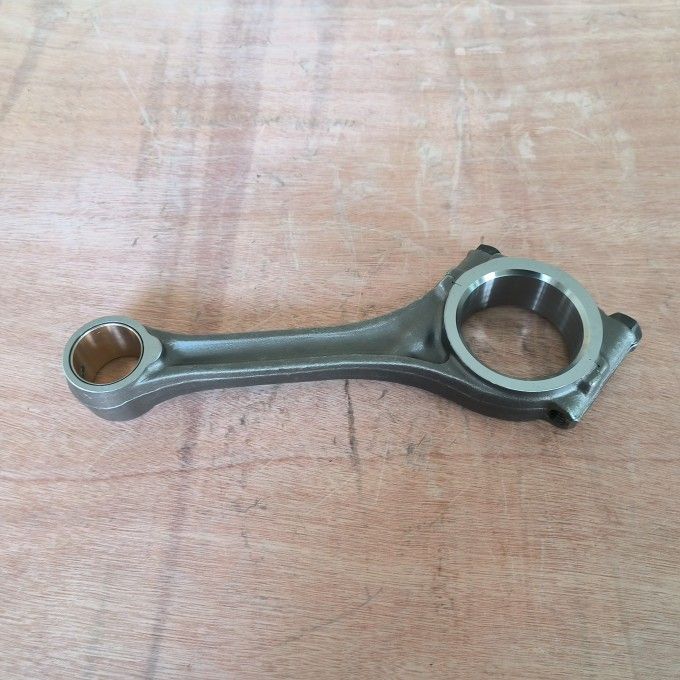

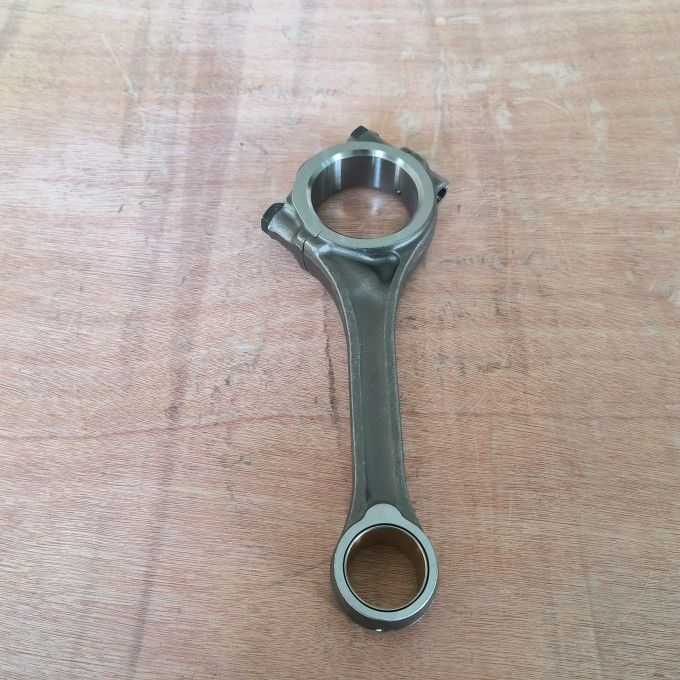

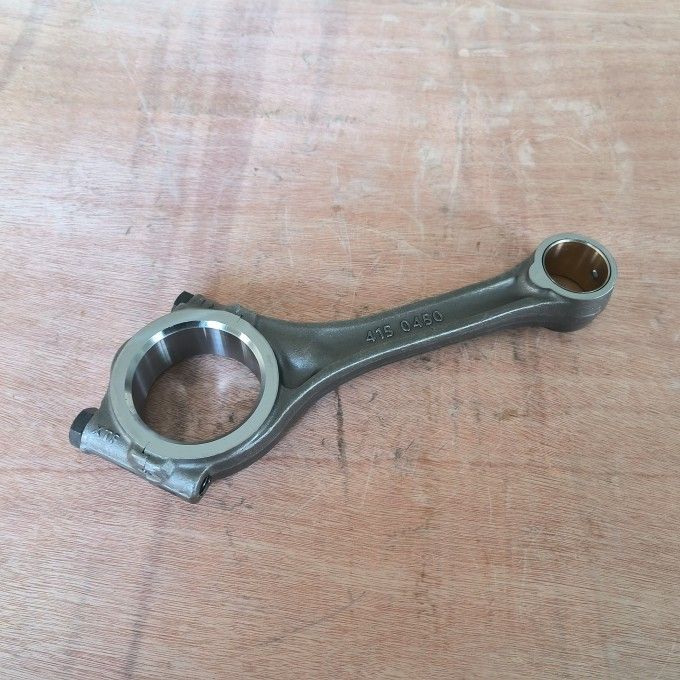

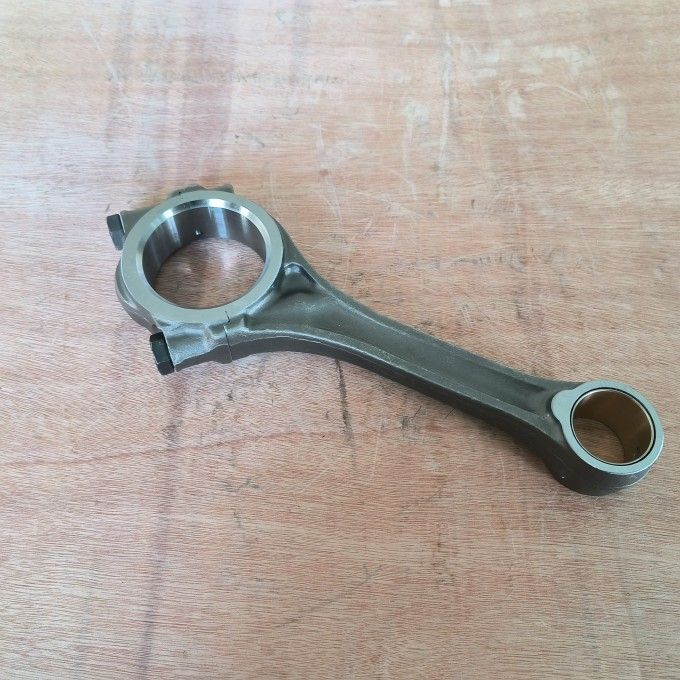

This connecting rod is a precision-engineered direct replacement for the DEUTZ FL912 series air-cooled diesel engines, including F2L912 (2-cylinder), F3L912 (3-cylinder), and F4L912 (4-cylinder) configurations widely used in agricultural tractors, forklifts, construction machinery, and generator sets. Manufactured from high-strength forged 40Cr or 42CrMo alloy steel, each rod undergoes multi-stage heat treatment (quenching and tempering) to achieve optimal tensile strength and fatigue resistance under sustained heavy-load operation. The big end bore is CNC machined to OEM specifications, accepting standard bearing shells with locating tabs, and is available in STD, 0.25mm, and 0.50mm undersize options to match reground crankshafts. The small end is fitted with a case-hardened phosphor bronze bushing, precision honed to exact wrist pin clearance for extended service life under demanding conditions. Every unit is 100% magnetic particle inspected (MPI) for surface and subsurface cracks, and key dimensions — center distance (typically 148mm for FL912 series), bore roundness, and bolt hole alignment — are verified with CMM equipment. Heavy-duty connecting rod bolts (grade 12.9) are included and pre-torque validated to prevent assembly errors. Weight matching across a complete set is controlled within ±2 grams to minimize engine vibration. This connecting rod supports full engine overhauls, damaged rod replacement, or rebuilding of core engines for resale into Africa, Southeast Asia, Middle East, and South American markets where DEUTZ FL912 engines remain the workhorse for off-highway equipment.
