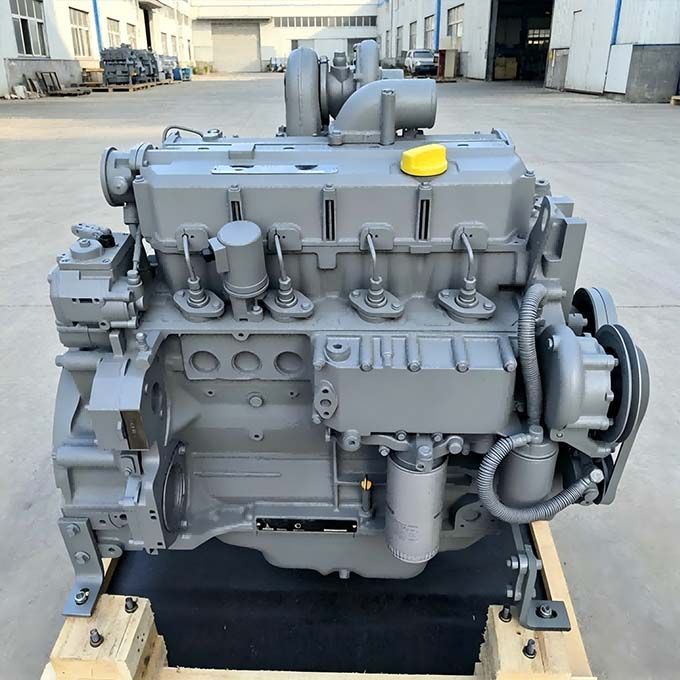

As a specialized China-based supplier, we focus on the electronically managed DEUTZ BF4M1013EC variant, commonly used in modern excavators, wheel loaders, and gensets requiring emission compliance. Our product range includes complete EC engines, common rail injectors, high-pressure pumps, ECU units, and full engine wiring looms. Unlike standard mechanical versions, the BF4M1013EC demands precise electronic matching—we provide pre-tested component sets to minimize calibration issues on your end. Suitable for both original equipment replacement and emission-upgrade retrofits. We offer batch traceability, test reports for electronic components, and direct support for diagnostic communication protocols. Quick dispatch to Europe, North America, and Southeast Asia. Send your machine serial number or ECU code for accurate cross-reference.
Production specification
BF4M1013EC | A | B | C | ||
mm | 895 | 634 | 940 | ||
Cyl No. and Arrangement | 4-Cyl in-line | ||||
Bore/Stroke(mm) | 108/130 | ||||
Air-intake way | Turbo charged cooling | ||||
Combustion system | Direct injection | ||||
Cooling way | Water-cooled | ||||
Displacement(L) | 4.76 | ||||
Max.Torque(N.m) | 577 | ||||
Power(kw) | 81 | 86 | 118 | ||
Power(hp) | 92 | 100 | 158 | ||
Speed(rpm) | 1500 | 1800 | 2300 | ||
Net Weight(kg) | 432 | ||||
Weight(kg) | 500 | ||||
Dimension(L*W*H/cm) | 130*95*105 | ||||
HS code: | 8408909290 | ||||
Application: | construction machinery / generator set / mining equiment / water pump / truck | ||||
Certification | ISO9001:2000 | ||||
Warranty | 12 Months / 1000 Hours | ||||
Quality Control | The engines have been rigorously tested | ||||
Payment | T/T, Western Union, Alibaba online payment. | ||||
Service | Guidance on product issues through online and video support | ||||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |||||
