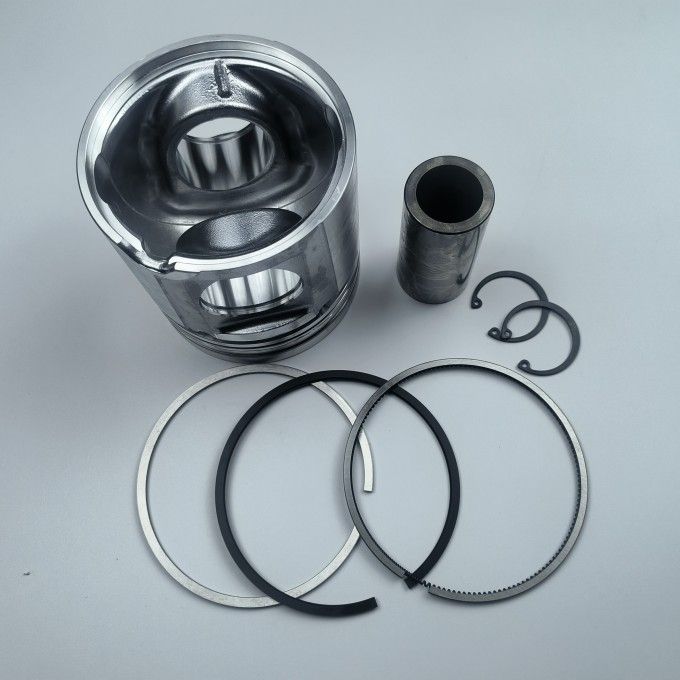

BFM1013 diesel engine parts piston kit set assy for deutz piston set

The piston assembly of a diesel engine is the core component of the engine, which converts the thermal energy generated by fuel combustion into mechanical energy. The compression ratio of diesel engines is high, and the explosive pressure borne by the piston top can reach 7840 - 11760 KPa, with the highest temperature at the top reaching 300 - 400℃. Therefore, the piston itself needs to have extremely high stiffness and strength, as well as good thermal conductivity.

Inquire Now Next Product

Production specification

Product Name	Piston kits
Application engine model	BFM1013
Piston Part No.	0425 3313 / 0450 1348 / 0420 7594 / 0425 3388 / 0450 1350 / 0425 3385 / 0450 1353 / 0425 9101
Piston ring Part No.	0450 1339 / 0425 3777 / 0450 1338 / 0420 7595 / 0425 3389 /
Piston pin Part No.	0420 0139
MOQ	1 set
Quality	OEM/Original
Material	aluminium alloy / steel
Net Weight(kg)	4
Certification	ISO9001:2015
Packing	nature packing
Warranty	6 Months
Payment	T/T, Western Union.
Service	Guidance on product issues through online and video support
