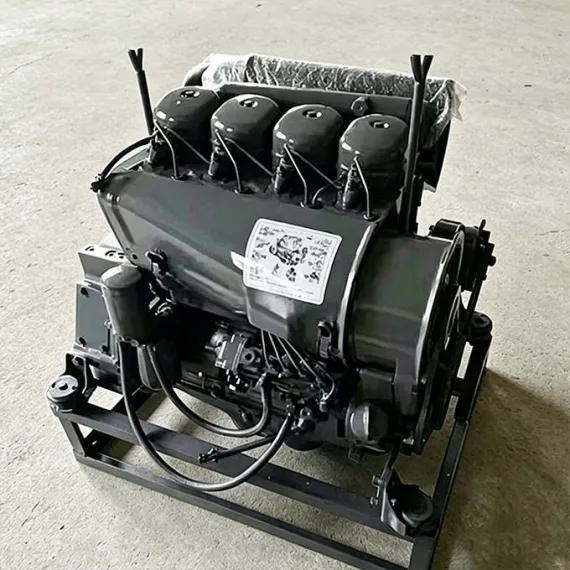

The DEUTZ F4L913 is a 4-cylinder, air-cooled diesel engine from the proven 913 series, valued for its small footprint and exceptional reliability in mobile and stationary applications. Typical uses include compact excavators, scissor lifts, ride-on sweepers, and small agri machinery. Our company supplies high-quality F4L913 engines—both new and factory-rebuilt—with all necessary installation interfaces matching OEM bolt patterns. We provide free technical support for flywheel housing adaptation and governor linkage setup. With direct warehouse access in China, we offer competitive lead times to Europe, North America, and Southeast Asia. Request a test video or bulk pricing.
Production specification
F4L913 | A | B | C | ||
mm | 860 | 673 | 820 | ||
Cyl No. and Arrangement | 4-Cyl in-line | ||||
Bore/Stroke(mm) | 102/125 | ||||
Air-intake way | Natural intake | ||||
Combustion system | Direct injection | ||||
Cooling way | Air-cooled | ||||
Displacement(L) | 4.086 | ||||
Max.Torque(N.m) | 250 | ||||
Power(kw) | 34 | 40 | 50 | 56 | |
Power(hp) | 46 | 54 | 67 | 75 | |
Speed(rpm) | 1500 | 1800 | 2300 | 2500 | |
Net Weight(kg) | 420 | ||||
Weight(kg) | 450 | ||||
Dimension(L*W*H/cm) | 107*83*105 | ||||
HS code: | 8408909290 | ||||
Application: | construction machinery / generator set / mining equiment / water pump / truck | ||||
Certification | ISO9001:2000 | ||||
Warranty | 12 Months / 1000 Hours | ||||
Quality Control | The engines have been rigorously tested | ||||
Payment | T/T, Western Union, Alibaba online payment. | ||||
Service | Guidance on product issues through online and video support | ||||
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate. | |||||
