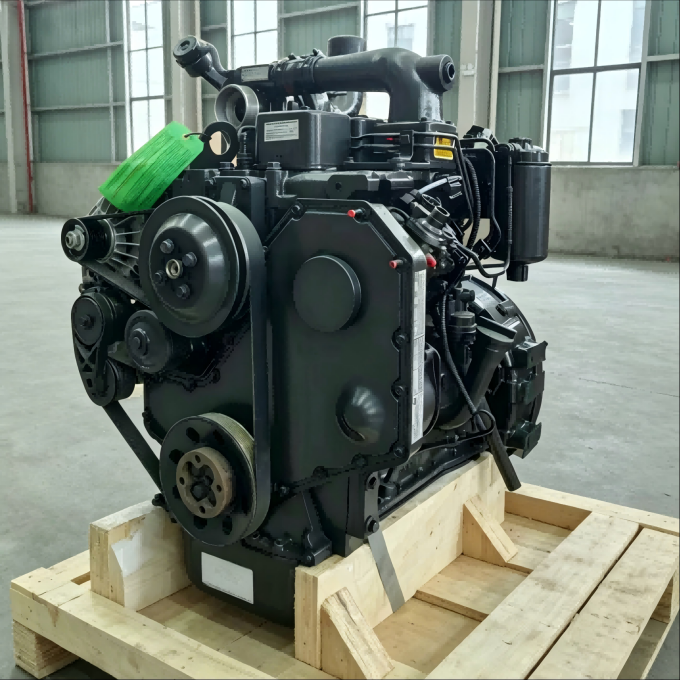

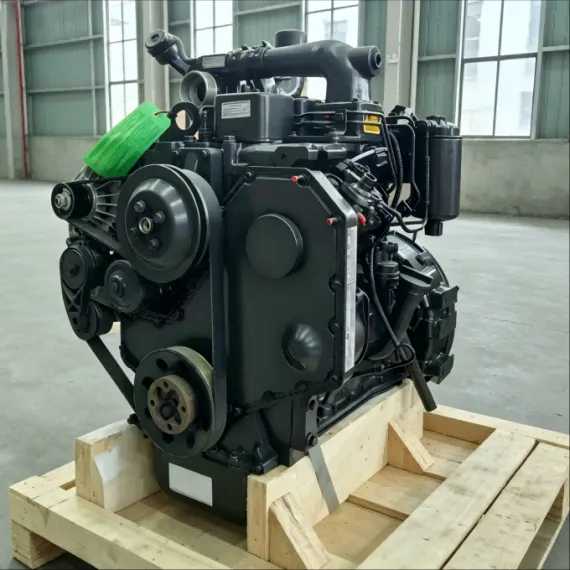

cummins b4.5 diesel engine water cooled 4 cylinder 4 stroke assembly

We supply the Cummins B4.5 – a 4.5L inline 4 common rail diesel engine delivering 100-170kW and 700N·m torque with Tier 4 Final / Stage V certification. Unlike the old mechanical 4BT, this modern B-series engine features 1800-bar common rail and DOC+DPF aftertreatment (no SCR), making it the clean and simple choice for skid steers, mini excavators, compact tractors, and gensets in emission-regulated regions. As a China exporter, we offer complete engines, ECUs, DPF units, and wiring looms – all dyno-tested with data logs. We can also depopulate or calibrate the ECM for stationary genset or off-highway use. Send your equipment model, target horsepower, and emission requirement for a matched solution.

Production specification


B4.5-150

B4.5-170

B4.5-200

Cyl No. and Arrangement

4-Cyl in-line

Bore/Stroke(mm)

107/124

Air-intake way

Turbo charged cooling

Combustion system

Direct injection

Cooling way

Water-cooled

Displacement(L)

4.5

Max.Torque(N.m)

112

127

149

Power(kw)

283

313

358

Power(hp)

150

170

200

Speed(rpm)

2000

Net Weight(kg)

380

Weight(kg)

450

Dimension(L*W*H/cm)

85*65*90

Application:

construction machinery / generator set / mining equiment / water pump / truck

Certification

ISO9001:2000

Warranty

12 Months / 1000 Hours

Quality Control

The engines have been rigorously tested

Payment

T/T, Western Union, Alibaba online payment.

Service

Guidance on product issues through online and video support

The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
