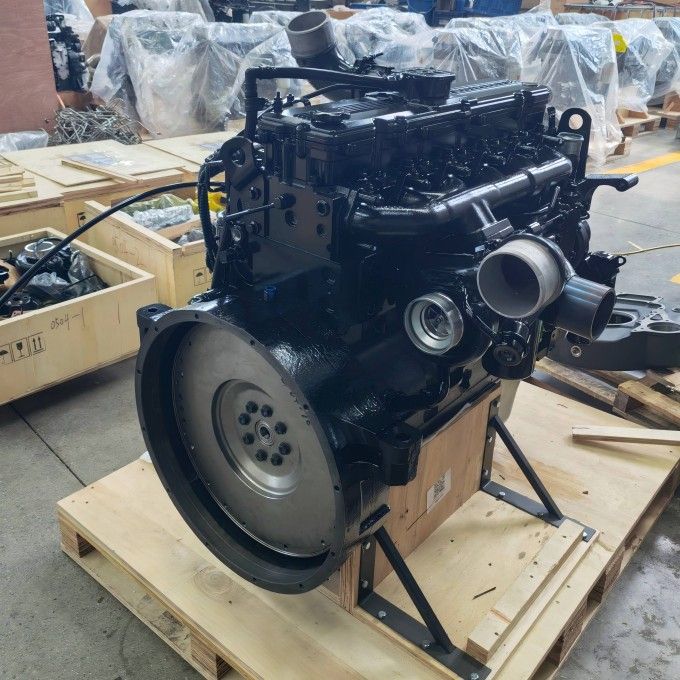

cummins isl 340 50 diesel engine water cooled 6 cylinder 4 stroke assembly

The Cummins ISL 340 50 is a 6-cylinder inline diesel engine with 8.9 liters displacement. Bore × stroke: 114mm × 145mm. Turbocharged with wastegate. High-pressure common rail (1800 bar) with full electronic control. Power: 340 hp (250 kW) at 2000 rpm. Max torque: 1250 lb-ft (1695 N·m) at 1400 rpm.Emissions: EPA 2010 compliant. Features cooled EGR, diesel oxidation catalyst (DOC), and selective catalytic reduction (SCR) with DEF injection. Dual electronic control modules (ECM + ACM) manage engine and aftertreatment.Key applications: Class 8 trucks (Freightliner, International), transit and school buses, motorhomes, and fire trucks.We supply complete ISL 340 50 engines, ECMs, ACMs, SCR systems, and full harnesses. Dyno-tested with data.

Inquire Now Next Product

Production specification

	ISL 340 50
Cyl No. and Arrangement	6-Cyl in-line
Bore/Stroke(mm)	114/145
Air-intake way	Turbo charged cooling
Combustion system	Direct injection
Cooling way	Water-cooled
Displacement(L)	8.9L
Max.Torque(N.m)	1500
Power(kw)	250
Power(hp)	340
Speed(rpm)	2100
Net Weight(kg)	710
Weight(kg)	830
Dimension(LWH/cm)	12580105
Application:	construction machinery / generator set / mining equiment / water pump / truck
Certification	ISO9001:2000
Warranty	12 Months / 1000 Hours
Quality Control	The engines have been rigorously tested
Payment	T/T, Western Union, Alibaba online payment.
Service	Guidance on product issues through online and video support
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
