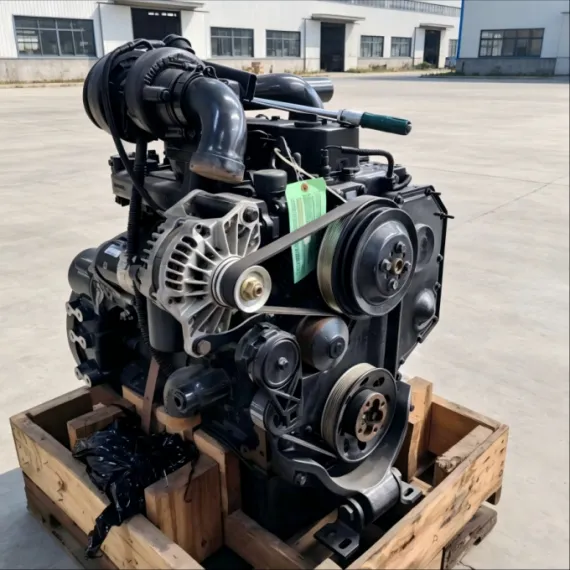

cummins QSB4.5 diesel engine water cooled 4 cylinder 4 stroke assembly

We offer the Cummins QSB4.5 – a 4.5L inline 4 common rail diesel engine delivering 100-160kW and 750N·m torque with Tier 3 / Stage IIIA certification. Unlike the Tier 4 B4.5 with DPF, this QSB version uses cooled EGR only – no DPF, no SCR – which means lower upfront cost, simpler maintenance, and no regen cycles for loaders, forklifts, compressors, and gensets in regions with lower emission requirements. As a China exporter, we supply complete engines, ECUs, full harnesses, and EGR coolers – all dyno-tested with data logs. We can also depopulate the ECM to remove speed or torque limits for genset or stationary applications. Send your equipment model, current engine serial number, and emission requirement for a direct replacement quote.

Production specification


QSB4.5-C100

QSB4.5-C140

QSB4.5-C170

Cyl No. and Arrangement

4-Cyl in-line

Bore/Stroke(mm)

110/118

Air-intake way

Turbo charged cooling

Combustion system

Direct injection

Cooling way

Water-cooled

Displacement(L)

4.5

Max.Torque(N.m)

450

560

680

Power(kw)

82

104

127

Power(hp)

110

140

170

Speed(rpm)

2000

Net Weight(kg)

380

Weight(kg)

430

Dimension(L*W*H/cm)

85*65*90

Application:

construction machinery / generator set / mining equiment / water pump / truck

Certification

ISO9001:2000

Warranty

12 Months / 1000 Hours

Quality Control

The engines have been rigorously tested

Payment

T/T, Western Union, Alibaba online payment.

Service

Guidance on product issues through online and video support

The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
