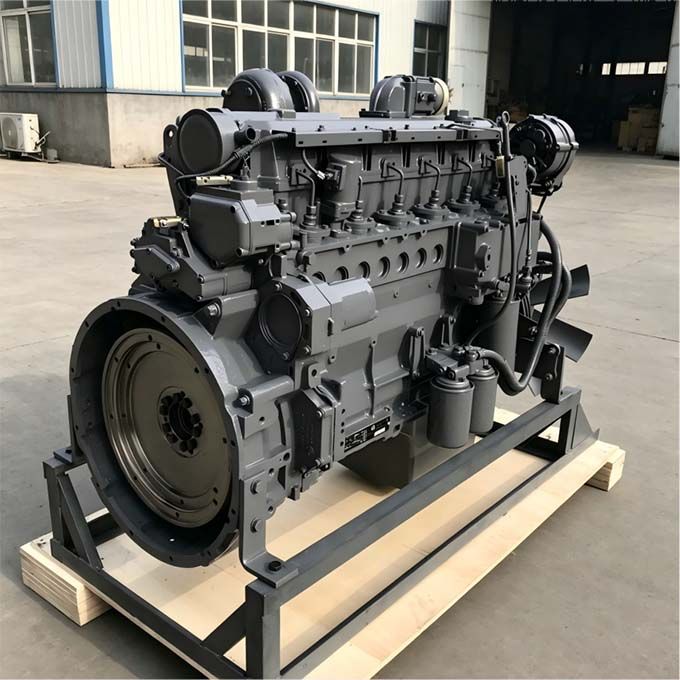

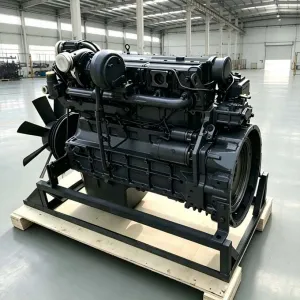

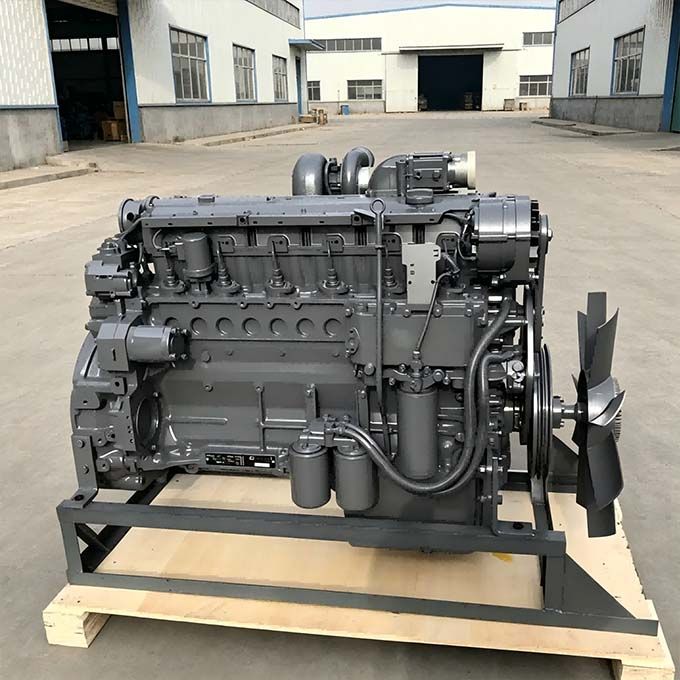

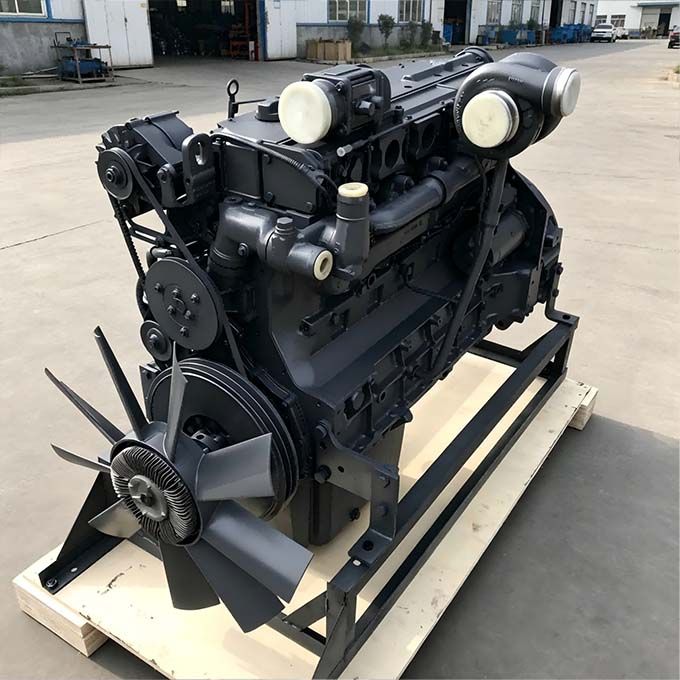

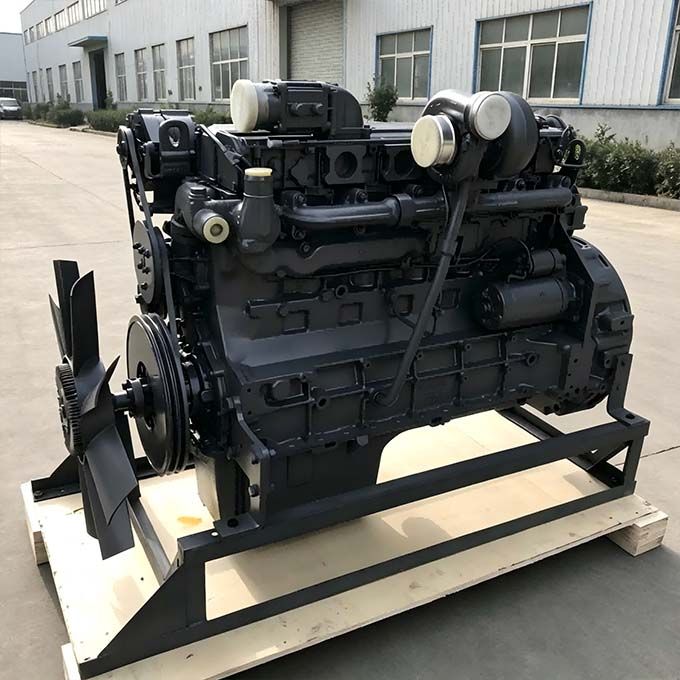

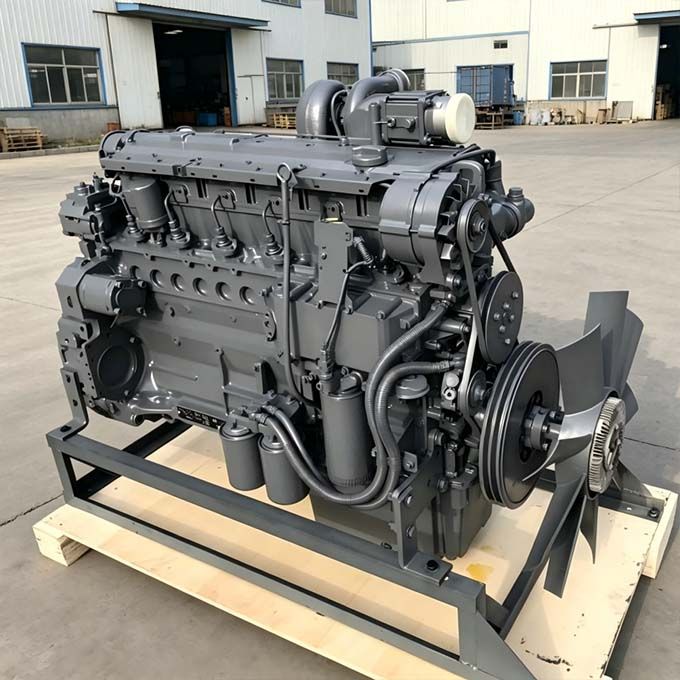

DEUTZ BF6M1013EC Engine – OEM Specs for Excavators Supplier

DEUTZ BF6M1013EC Engine – OEM Specs for Excavators & Loaders | China Exporter

We supply the DEUTZ BF6M1013EC as a functional equivalent to OEM 0423 7269, primarily for off-highway applications like telescopic handlers and road rollers. Every engine comes with a pre-delivery inspection report covering valve clearance and injector opening pressure. Bolt-on components — alternator, starter, and twin thermostat housing — are interchangeable with original BF6M1013 units. No minimum order quantity; mixed spares available for 1013 series.

Production specification

BF6M1013EC		A		B		C
	mm	1162		683		990
Cyl No. and Arrangement	6-Cyl in-line
Bore/Stroke(mm)	108/130
Air-intake way	Turbo charged cooling
Combustion system	Direct injection
Cooling way	Water-cooled
Displacement(L)	7.14
Max.Torque(N.m)	854
Power(kw)	139		148		174
Power(hp)	186		199		234
Speed(rpm)	1500		1800		2300
Net Weight(kg)	572
Weight(kg)	650
Dimension(LWH/cm)	15684123
HS code:	8408909390
Application:	construction machinery / generator set / mining equiment / water pump / truck
Certification	ISO9001:2000
Warranty	12 Months / 1000 Hours
Quality Control	The engines have been rigorously tested
Payment	T/T, Western Union, Alibaba online payment.
Service	Guidance on product issues through online and video support
The price varies based on configu-ration, serial number, and part quality. For an accurate quote, contact a supplier with your specific engine serial number ornameplate.
